A totally remote control unit , very useful for moving harmful or toxic loads.

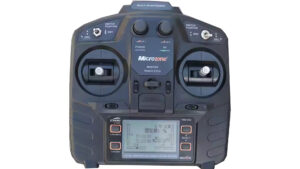

2 RC options 1. Visual control 2. Standard control
3.1 Tyre type rubber
Dimensions
4.1 Lift height h3 (mm) 1470
4.2 Fork height, lowered s(mm) ≤80
4.3 Overall length l1 (mm) 2550
4.4 Overall width b(mm) 790
4.5 Fork length l1 (mm) 800
4.6 Wheelbase Y (mm) 1150
4.7 Fork outer width b1 (mm) 680
4.8 Fork inner width b2 (mm) 305
4.9 Minimum turning radius Wa (mm) 1270
Performance
5.1 Travel speed, laden/ unladen mm/ s 4.0/5.0
5.2 Lifting speed, laden/ unladen mm/s 140/135
5.3 Lowing speed, laden/ unladen mm/s 150/155
5.4 Maximum gradeability, laden/ unladen ° 7/10
5.5 Brake system Electric motors electromagnetic
Drive
6.1 Drive Motor Type DC motor
6.2 rate kw 1.2
6.3 Lifting motor type DC motor
6.4 rate kw 1.2
Battery
7.1 Voltage V/AH DC 48v
Others
Noise level dB <70
weight kg 950
