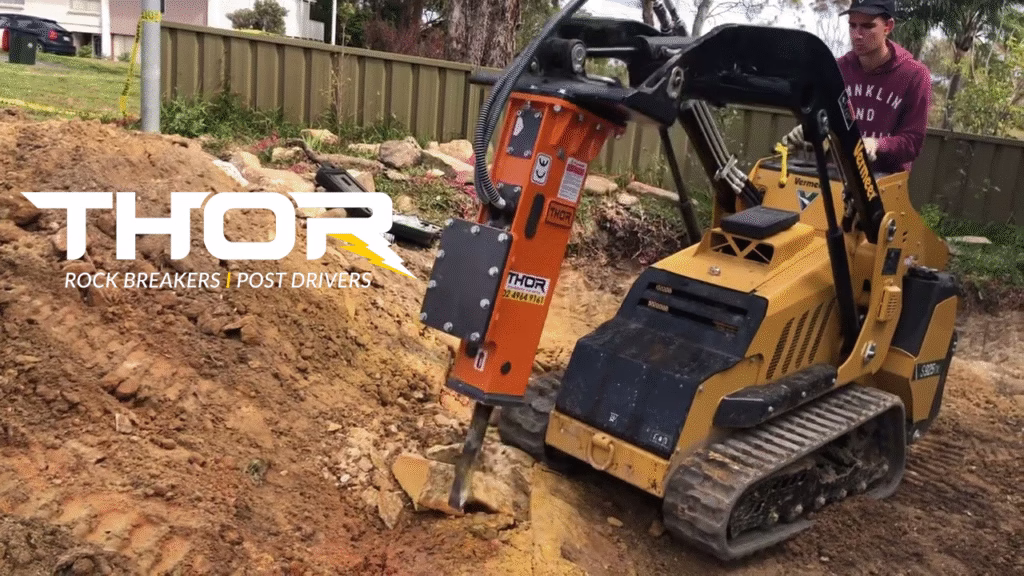

Post Driver Attachment for mini skid loader
Price range: £2,040.00 through £2,090.00Weight (Kg) 160 - 170Select options This product has multiple variants. The options may be chosen on the product page
A Grade
MAKE-Thor
Redefining Performance for Rock Breakers and Post Drivers
Thor employs an advanced piston-driven mechanism, powered by the renowned SB Power Cell that has dominated the industry for over 50 years. Operating at a nitrogen gas pressure of 16.5 bar, this mechanism delivers unparalleled impact Joules.
As hydraulic oil flows from the host machine into Thor’s power cell, it propels the piston within a nitrogen gas chamber. This hydraulic-nitrogen synergy sets the stage for generating substantial impact force. The pressurised hydraulic oil acts as the driving force, propelling the piston downward. This swift motion compresses the nitrogen gas, storing potential energy.
Upon reaching peak pressure, the hydraulic valve opens, triggering a controlled impact as the hydraulic oil is released. This dynamic process harnesses both hydraulic pressure and the stored compressed nitrogen energy. This energy combination propels the piston onto the rock chisel or post tool with formidable blows of impact Joules. Consequently, a sequence of precisely controlled impacts ensues, effectively driving the rock chisel or post tool with optimum force and accuracy. This capability ensures efficient material breakage or installation. The dual-source energy release equips Thor’s rock breakers and post drivers to adeptly adapt to diverse operational demands.
The integration of hydraulic flow control confers a significant advantage. The host machine’s operator can dictate the driver’s speed with precision by regulating the hydraulic flow. By adjusting the hydraulic flow rate, operators can either expedite or moderate the driving action. This adaptability optimally suits various tasks and materials. This level of control empowers operators to tailor the impact intensity to match job-specific requirements, thereby enhancing both operational efficiency and precision.
Minimal Moving Internal Parts – Simplifying Maintenance
THOR’s design philosophy prioritises ease of maintenance. With only two moving internal components – the piston and the valve – maintenance procedures are minimised and streamlined, resulting in reduced downtime and low associated costs. This simplicity extends to disassembly and reassembly, facilitating swift component replacements. This design nuance significantly contributes to prolonged operational uptime, ensuring that maintenance tasks when required are efficient and effective.
Precise Blow Force
Uncompromising Durability
THOR’s commitment to uncompromising durability is exemplified by the use of premium high-strength heat-treated alloy steel in the manufacturing process of our rock breakers. This alloy steel offers an exceptional combination of tensile strength, hardness, and resistance to wear and abrasion. This not only extends the operational life of the equipment but also ensures optimal performance even under the most demanding working conditions. The alloy’s inherent toughness reduces the risk of fractures and deformations, delivering robustness that resonates across diverse applications.
THOR’s commitment to quality is also reflected in our rust resistant nickel plated bolts, flash chromed pins and bosses as well as top quality industrial painted power cells.
THOR’s heavy duty mounts for skid steers, tractors, loaders, and telehandlers weighing 200 – 250kg are made from 16mm and 20mm plate steel and together with their slanted legs and are the most stable on the market. The mounts are quick and easy to attach and when detached from the host machine and when not in use they stand anchored where left, with no danger of them falling over.
The Advantages of Engineering Excellence
THOR’s advance design yields a multitude of advantages. Our focus on robust materials and engineering precision enhances equipment longevity, minimising replacement cycles.
The synergy between hydraulic and nitrogen driven impact results in unparalleled force, enabling efficient material breakage and excavation, the simplicity of our design translates to minimised maintenance demands, ensuring operational continuity.
With THOR rock breakers and post drivers, you benefit from precise, powerful, and reliable equipment that maximises productivity, reduces costs and stands as a testament to innovative engineering excellence.
Elevate your operations today with THOR Rock Breakers and Post Drivers – where advanced design defies a new standard in construction equipment performance.
1. Overview
Post and pile driver attachments expand the utility of mini skid steer loaders (stand-on or walk-behind) for driving fence posts, signposts, t-posts, and light structural piles. These compact attachments are ideal for landscaping, farming, and light construction projects where maneuverability is essential.
2. Types of Mini Post Drivers
| Type | Description |
|---|---|
| Hydraulic Post Driver | Uses hydraulic cylinder pressure to drive posts with speed and control. |
| Drop Hammer (Gravity) | Relies on a free-falling steel weight to drive posts—simple and reliable. |
| Vibratory Driver | Applies high-frequency vibration to seat posts—most effective in softer soil. |
| Manual-Assisted Driver | Lightweight units with limited hydraulic assist—best for small or narrow posts. |
Hydraulic post drivers are the most common for mini skid steers due to their compact size and efficient force application.
3. Compatibility & Mounting
3.1 Mounting Types
| Mounting Plate | Compatible Machines |
|---|---|
| Mini Universal Plate | Toro Dingo, Vermeer, Ditch Witch, Boxer, Kanga |
| Bobcat MT Plate | Bobcat MT55, MT100, and similar mini loaders |
| Custom Adapters | Available for specific proprietary couplers |
Always match the mounting plate of the driver with your machine type to ensure fitment.
3.2 Weight & Size
- Most mini post drivers weigh 150–450 lbs
- Working height should be suitable for short machines (under 72 inches)
- Ensure total attachment weight + post does not exceed lift capacity
4. Hydraulic Requirements
| Post Driver Type | Flow Range (GPM) | Pressure Range (PSI) |
|---|---|---|
| Hydraulic Driver | 7–15 GPM | 2,000–3,000 PSI |
| Vibratory Driver | 10–18 GPM | 2,500–3,200 PSI |
| Drop Hammer | N/A (no hydraulic flow required) |
- Hydraulic hoses typically use 3/8” or 1/2” flat-face couplers
- Case drain rarely needed, but check with manufacturer
5. Key Components
| Component | Function |
|---|---|
| Driver Head / Impact Plate | Delivers force directly to post top to embed it into soil |
| Hydraulic Cylinder | Provides downward driving force using fluid pressure (on hydraulic models) |
| Guide Sleeve | Stabilizes the post and maintains vertical alignment |
| Mounting Frame | Attaches the unit to the mini skid steer’s quick-attach plate |
| Safety Guards | Shields operator from flying debris or misaligned impacts |
6. Operating Instructions
6.1 Setup
- Secure attachment to quick attach plate.
- Connect hydraulic hoses (check for leaks and correct direction).
- Purge system by briefly activating hydraulic circuit.
6.2 Post Driving
- Position the post vertically in the guide sleeve.
- Lower the driver until it contacts the top of the post.
- Activate the driver using skid steer auxiliary controls.
- Apply consistent pressure—do not force or bounce the machine.
- Monitor post angle during driving and adjust as needed.
For drop hammers: lift and release the hammer until the post is fully driven.
7. Safety Guidelines
- Wear PPE: helmet, gloves, steel-toe boots, safety glasses
- Keep bystanders clear of work zone (minimum 20 ft)
- Do not drive posts into frozen ground or concrete
- Stabilize the machine before impact—use level ground where possible
- Relieve hydraulic pressure before disconnecting hoses
8. Maintenance Schedule
| Task | Frequency |
|---|---|
| Inspect hydraulic fittings | Daily |
| Lubricate guide sleeve & pivots | Every 10 hours |
| Check for bent or worn driver heads | Weekly |
| Clean debris from impact areas | After every use |
| Tighten mounting bolts | Weekly |
Use OEM-grade grease and replace impact caps or inserts as they wear.
9. Use Cases
- Fence Installation: Agricultural, garden, ranch, or residential fencing
- Landscaping: Installing bollards, trellises, signs, or decorative posts
- Trail & Park Maintenance: Setting boundary markers or posts for signage
- Vineyard & Orchard Work: Driving trellis or irrigation line posts
- Light Construction: Installing steel stakes or structural supports in soil
10. Selection Tips
Verify GPM/PSI rating matches your mini loader Choose hydraulic driver for repetitive tasks or hard soil Use drop hammer for simplicity and fewer moving parts Pick an attachment with replaceable driver heads and adjustable guides Ensure post height fits within the vertical lift and clearance of your mini skid stee
