| Model | Weight | Trenching Depth | Trenching Width | Number of Teeth | Operation Pressure | Oil Flow | L*W*H | ||||
| Unit | Kg | Lbs | mm | Inches | mm | Inches | Pcs | Mpa | l/min | Gpm | m |
| 36” | 460 | 1012 | 915 | 36 | 200 | 8 | 29 | 16 | 50-100 | 13-26 | 1.9*1.2*0.9 |
| 48” | 520 | 1144 | 1220 | 48 | 300 | 12 | 29 | 16 | 75-100 | 20-26 | 2.9*1.4*0.9 |

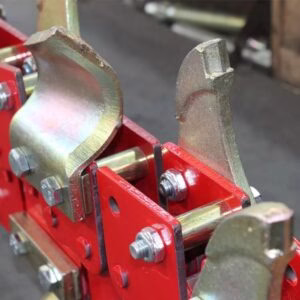

Trencher incorporates Manganese alloy tines to provide a multi purpose attachment suitable for avariety of applications. The Eaton drive motor mounts to an industry-leading planetary drive that provides high torque to the digging chain.
● Universal mounting quick attach, included to suit your machine
● Designed to quickly and reliably dig trenches 24, 36, or 48 inches deep
● 6”, 8” and 10” chain widths available.
● USA Eaton direct drive motor ensures optimum performance and longevity and allows forward and reverse operation
● Heavy frame construction stands up to everyday rugged use
● Machined and enclosed front bearings are protected against dirt and offer extended life
CLASS*A Grade/Hire Grade
