BUILT FOR TOUGH JOBS

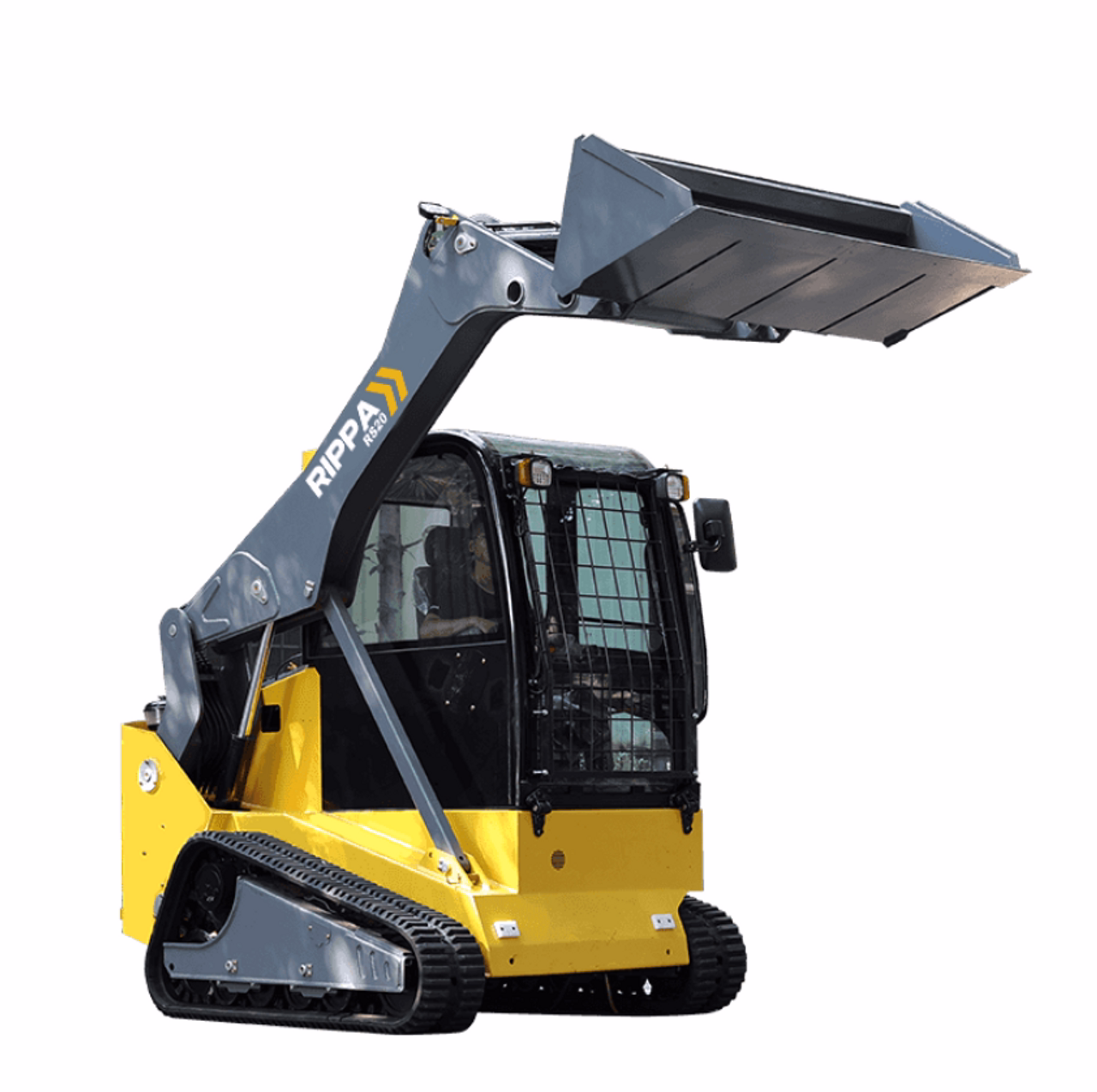

The RIPPA RS20 is a powerful, heavy-duty skid steer loader equipped with a high-performance Yanmar engine, designed for demanding tasks. With increased hydraulic flow, extended wheelbase, and enhanced stability, the RS20 ensures high efficiency and safety in tough working environments.
Equipped with a Yanmar 498C engine, it delivers powerful output and low fuel consumption, ensuring reliable operation even in demanding conditions.
Equipped with a dual-speed motor, it reaches a top speed of 10 km/h.
It features a four-pump hydraulic system: two tandem closed-loop pumps, a boost pump, and a gear pump, with flow rates of 108, 108, 35.7, and 108 L/min, respectively, ensuring efficient power distribution and smooth, stable operation.
The LCD multi-function display intuitively displays various machine parameters, including fuel level, power, temperature, time, and speed.
The multi-function pilot handle integrates travel, steering, high and low speed, and the horn. The right handle integrates motion and auxiliary tool controls.
The high-strength single-sided boom has a maximum lifting capacity of 2100 kg.
The bucket is leveled, maintaining a horizontal position when the boom is raised, preventing the bucket from tilting.
HIGHLIGHTS
-
49.9kW Yanmar engine with strong torque and fuel efficiency
-
Extended wheelbase for improved stability and load-bearing
-
Fast attachment change, suitable for multiple job types
-
Ergonomic design: adjustable seat, electronic joystick, and easy controls
-
Low noise, low vibration, and eco-friendly operation
TECHNICAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Operating Weight | 4150 kg / 9130 lb |
| Bucket Capacity | 0.4 m³ / 14.1 ft³ |
| Rated Load | 1050 kg / 2310 lb |
| Max Load | 2100 kg / 4620 lb |
| Travel Speed (Low/High) | 0–5 / 0–10 km/h |
| Max Dump Height | 2250 mm / 88.6 in |
| Max Load Height | 3750 mm / 147.6 in |
| Dump Reach | 1360 mm / 53.5 in |
| Ground Clearance | 230 mm / 9.1 in |
| Transport Dimensions (L×W×H) | 3820×1850×2460 mm |
| Engine Model | Yanmar 4TNV98C-PLYS |
| Power / RPM | 49.9 kW / 2400 rpm |
| Displacement | 3.319 L |
| Hydraulic Pump | Dual Closed Pump V90C47H3A0 |
