Brick & Block Clamp Attachments for Skid Steer Loaders
1. Overview
Brick, block, and paver clamp attachments—also known as brick clamps, block grabs, paver clamps, or concrete product clamps—allow skid steer loaders to mechanically lift, clamp, transport, and place stacks of masonry materials such as bricks, concrete blocks, retaining wall blocks, pavers, and precast components. They provide faster loading/unloading and eliminate manual handling, improving productivity and reducing injury risk.
2. Types of Brick & Block Clamps
2.1 Mechanical Brick/Block Clamp (Spring-Loaded or Gravity-Activated)
- Uses gravity or spring tension to clamp material when lifted.
- No hydraulics required.
- Good for uniform stacks of bricks or blocks.
- Simpler, lower cost, fewer failure points.

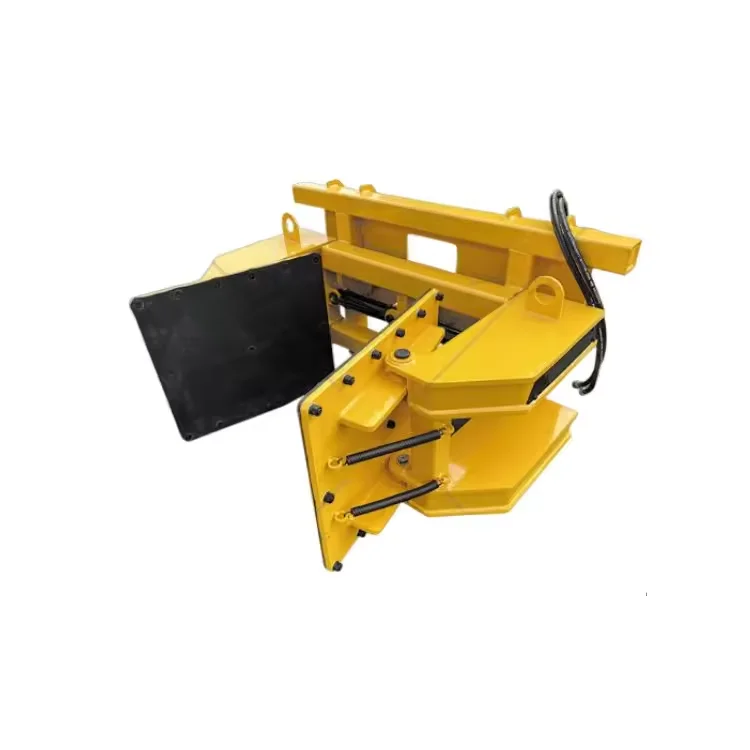

2.2 Hydraulic Brick Clamp
- Uses a hydraulic cylinder or dual cylinders to actuate clamp arms.
- Stronger, more consistent, higher lifting capacities.
- Handles uneven stacks or heavier structural blocks.
- Ideal for commercial masonry yards.
2.3 Scissor-Lift Brick Grab
- Scissor-style arms open wide and close as weight is applied.
- Typically gravity-actuated.
- Simple, rugged, minimal maintenance.
2.4 Multi-Layer Paver Clamp / Paver Installer Clamp
- Designed for landscaping pavers in packaged layers.
- Often used with vacuum lifters or mechanical alignment plates.
- Can handle irregular palletization.
2.5 Adjustable Width Universal Block Clamp
- Arms and pads can be repositioned to accommodate multiple product sizes.
- Common in mixed-material yards or distributors.
2.6 High-Capacity Retaining Wall Block Clamp
- Designed for heavy landscape blocks (retaining wall stones, concrete garden blocks).
- Reinforced frame, heavy-duty pads, and wide clamping range.
2.7 Specialty Clamp Types
- Pipe Clamp: For concrete or PVC pipe.
- Slab/Stone Clamp: For heavy concrete slabs or flat stones.
- Mini Clamp: For small packages or lightweight blocks.
3. Mechanical and Structural Components
3.1 Frame & Chassis
- High-strength steel frame designed to withstand compressive loads.
- Must match skid steer capacity and lift geometry.
3.2 Clamp Arms
- Single or dual arms depending on clamp type.
- Often equipped with non-marking rubber pads or replaceable steel friction plates.
- Adjustable lateral spacing for different material widths.
3.3 Grip Pads (Friction Pads)
- Rubber or polyurethane anti-slip pads.
- Provide uniform clamping force without damaging material.
3.4 Actuation System
- Mechanical clamps: Spring-loaded, gravity-actuated linkages.
- Hydraulic clamps: Cylinders, hoses, and control valves.
3.5 Guide Rails & Slides
- Allow smooth lateral travel of clamp arms.
- Grease points required for consistent operation.
3.6 Mounting Plate
- Standard skid steer quick-attach or optional mini-SSQA.
- Must support vertical lifting without deflection.
4. Hydraulic Requirements (for Hydraulic Clamps)
- Hydraulic Flow: 5–15 GPM typical
- Pressure: 2,500–3,500 PSI
- Cylinder Bore: Usually 2″–3″
- Control: Operated via auxiliary hydraulic controls
Higher pressure improves clamping force; insufficient flow results in slower clamp actuation.
5. Material Capacity & Sizing Considerations
5.1 Weight Ratings
Common capacity ranges:
- 1,000–2,500 lb → Standard brick/paver clamps
- 2,500–4,000 lb → Commercial block or retaining wall block clamps
- 4,000–6,000 lb → Heavy-duty stone and concrete slab clamps
5.2 Opening Range
Typical clamp jaw ranges:
- Min: 12–18 inches
- Max: 36–60 inches depending on model
5.3 Pallet Compatibility
- Euro pallet stacks
- Brick cubes
- Paver layers
- Concrete block bundles
6. Application Use Cases
- Moving pallets of bricks or concrete blocks
- Installing retaining wall blocks
- Handling bundles of pavers for hardscaping
- Unloading delivery trucks
- Moving construction materials around job sites
- Landscaping supply yards
- Precast concrete placement
- Stone and masonry distribution operations
7. Operation Procedures
7.1 Preparation
- Inspect clamp pads, linkage arms, and mount plate.
- Verify skid steer lift capacity > load weight.
- Ensure load is stable, uniform, and accessible from sides.
7.2 Lifting Procedure
- Position loader parallel to load.
- Align clamp arms with stack.
- Close clamp (mechanical: lower weight; hydraulic: apply pressure).
- Lift slowly while checking stability.
- Transport at low height to maintain center of gravity.
- Lower and release clamp (mechanical: reduce weight; hydraulic: disengage).
7.3 Best Practices
- Keep load close to ground during travel.
- Avoid lifting on slopes or uneven terrain.
- Do not clamp damaged or irregular stacks.
8. Safety Guidelines
- Never place hands between clamp arms and load.
- Keep bystanders away from the lifting zone.
- Avoid traveling with elevated loads.
- Check hydraulic hoses for leaks before use.
- Maintain even weight distribution on stacks.
- Do not exceed rated clamp or machine capacity.
- Wear PPE (steel-toe boots, gloves, eye protection).
9. Inspection & Maintenance
Daily Checks
- Grip pad condition
- Arm alignment and straightness
- Hydraulic hose integrity
- Excessively worn slide rails
- Smooth mechanical hinge movement
Weekly Maintenance
- Grease pivot points and slides
- Inspect weld joints for cracks
- Check clamp opening/closing alignment
- Confirm pad bolts are tight
- Inspect hydraulic cylinders (if equipped)
Annual / Heavy Use Maintenance
- Replace grip pads
- Rebuild hydraulic cylinders
- Re-align frame if bent
- Replace worn bushings or pivot pins
10. Troubleshooting
Mechanical Clamps
| Issue | Cause | Solution |
|---|---|---|
| Won’t grip | Worn pads, misalignment | Replace pads, adjust arms |
| Load slips | Insufficient friction | Clean or replace pads |
| Arms bind | Lack of lubrication | Grease slides |
Hydraulic Clamps
| Issue | Cause | Solution |
|---|---|---|
| Weak clamping | Low pressure, cylinder wear | Check PSI, rebuild cylinder |
| Jerky movement | Air in hydraulic lines | Bleed system |
| Slow actuation | Low flow | Inspect auxiliary hydraulics |
11. Compatibility Considerations
- Skid steer rated operating capacity (ROC)
- Hydraulic PTO capability (if hydraulic clamp)
- Attachment mount plate type
- Clamp max opening width vs block/paver stack size
- Ground conditions on job sites
- Required reach and visibility for block placement
12. Performance Grading Criteria
Grade A – Excellent Condition
- Tight, clean hydraulics
- Perfectly aligned arms
- Grip pads like-new
- No structural cracking or fatigue
Grade B – Good Used Condition
- Minor pad wear
- Slight play in pivots
- Clean hydraulics
Grade C – Fair
- Worn pads
- Loose pivots
- Cosmetic damage
- Acceptable for light duty
Grade D – Poor / Unsafe
- Cracked frame
- Misaligned arms
- Hydraulic failure
- Not safe for lifting operations
